The right terminal for every checkout.

Six Android models across all-in-one, mobile, tablet, smart-reader and PIN pad form factors. Every terminal runs Register and is managed remotely in TMS.

CodePay P5 Pro
P5 ProNEW↓
ALL-IN-ONE ANDROID POS
CodePay P5K
P5K↓
COMPACT ANDROID POS
CodePay P5L
P5L↓
MOBILE ANDROID POS
CodePay T2
T2↓
VERSATILE PAYMENT TABLET
CodePay RX
RX↓
COMPACT SMART READER
CodePay P5L PIN Pad
P5L PIN Pad↓
SMART RETAIL PIN PAD

Compare the lineup.

P5 ProNEWP5KP5LT2RXP5L PIN Pad
Form factorAll-in-oneCompact + keypadMobile handheldTabletSmart readerPIN pad
Display5.5" · 1280×7204" · 480×8005.5" · 1280×72010.1" · 1920×12004" square5.5" · 1280×720
Operating systemAndroid 16Android 12Android 11Android 13Android 12Android 11
Cellular4G4G4G—4G—
Wi-Fi · BluetoothDual-band · 5.0Dual-band · 5.0Dual-band · 5.0Dual-band · 5.2Dual-bandDual-band · 5.0
Ethernet—————RJ45
Printer2" thermal58 mm thermal————
Battery2,620 mAh2,620 mAh3,420 mAh7,000 mAhOn requestWired power
Weight443 g402 g230 g635 g186 gOn request

All models support EMV chip, contactless NFC and magnetic stripe.

P5 ProNEW

Countertop checkout with a built-in high-speed printer.

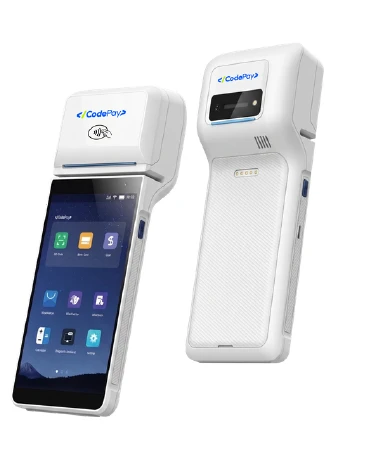

CodePay P5 Pro terminal
5.5"
HD touchscreen
2"
Thermal printer
4G
plus dual-band Wi-Fi
443 g
Weight
Request a demo unitCompare models
[ 02.A ] FULL SPECIFICATIONS
PLATFORM
Model
P5 Pro
Operating system
Android 16
CPU
Qualcomm octa-core, up to 2.0 GHz
Memory
4 GB LPDDR4 + 64 GB eMMC · Optional 2 GB + 32 GB
DISPLAY AND INPUT
Display
5.5" IPS, 1280×720 HD, capacitive multi-point touch
Camera
Front 2 MP FF (optional) · Rear 5 MP AF, 2D scan engine optional
Fingerprint
FBI / STQC Level 1 (optional)
Audio
1 W speaker · Mic (optional)
Buttons
Power · Scan
CONNECTIVITY
Network
2G / 3G / 4G
Wi-Fi
2.4 / 5 GHz, IEEE 802.11 a/b/g/n/ac
Bluetooth
5.0, BLE
GPS
GPS / A-GPS, GLONASS, BeiDou
Ports
USB-C 2.0 OTG · 5 pogo pins
PAYMENTS AND SECURITY
Security processor
MAX32555
NFC
13.56 MHz, ISO/IEC 14443 Type A & B, MIFARE S50/S70, FeliCa
Card readers
MSR: ISO 7810–7813, 3 tracks · IC card: ISO 7816
Card slots
2 × Micro SIM · 2 × PSAM · 1 × TF up to 128 GB
HARDWARE AND POWER
Printer
2" high-speed thermal · 58 × 40 mm roll · 100 mm/s (lab tested)
Battery
Removable lithium polymer, 7.4 V / 2,620 mAh
Adapter
Input AC 100–240 V, 50/60 Hz · Output 5 V / 2 A
Size (L × W × H)
209.09 × 78.59 × 19 mm
Weight
443 g
Environment
Operating −10 °C to 55 °C · Storage −20 °C to 60 °C · Humidity ≤ 95%
IN THE BOX AND OPTIONS
Accessories
Charging cradle, multi-port charging cradle (optional)
View full model details →

P5K

A compact terminal with a physical keypad and built-in printer.

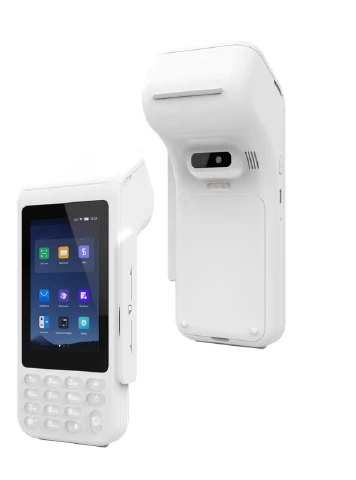

CodePay P5K terminal
4"
Touchscreen + keypad
58 mm
Thermal printer
4G
plus dual-band Wi-Fi
PCI PTS
6.2 certified
Request a demo unitCompare models
[ 03.A ] FULL SPECIFICATIONS
PLATFORM
Model
P5K (P053)
Operating system
Android 12
CPU
Quad-core Cortex-A53, 2.0 GHz
Memory
2 GB LPDDR4X + 32 GB eMMC · Optional 1 GB + 8 GB
DISPLAY AND INPUT
Display
4" IPS, 480×800, capacitive two-point touch
Keypad
Power button + 15 keys (10 numeric, 5 function)
Camera
Front 2 MP FF (optional) · Rear 0.3 MP FF / 2 MP FF (optional)
Fingerprint
FBI, STQC L1 (optional)
Audio
1 W speaker · Buzzer (optional)
CONNECTIVITY
Network
2G / 3G / 4G
Wi-Fi
2.4 / 5 GHz, IEEE 802.11 a/b/g/n/ac
Bluetooth
5.0, BLE
GPS
GPS / A-GPS, GLONASS, BeiDou
Ports
USB-C 2.0 · 2 pogo pins (optional)
PAYMENTS AND SECURITY
Security processor
MH2101
NFC
13.56 MHz, ISO/IEC 14443 Type A & B, MIFARE S50/S70, FeliCa
Card readers
MSR: ISO 7810–7813, 3 tracks · IC card: ISO 7816
Card slots
2 × SIM + 1 × PSAM + 1 × TF · Optional 1 × SIM + 2 × PSAM + 1 × TF · Optional eSIM + 1 × SIM + 2 × PSAM + 1 × TF
Certifications
EMV CT L1/L2, EMV CTLS L1, Visa, Mastercard, Amex, Discover, UPI, JCB, TQM, PCI PTS 6.2, FCC, CE, RoHS
HARDWARE AND POWER
Printer
Thermal · 58 × 40 mm roll · 80 mm/s
Battery
Removable lithium polymer, 7.4 V / 2,620 mAh
Adapter
Input AC 100–240 V, 50/60 Hz · Output 5 V / 2 A
Size (L × W × H)
198.5 × 65.5 × 81.5 mm
Weight
402 g
Environment
Operating −10 °C to 55 °C · Storage −30 °C to 70 °C · Humidity ≤ 95%
IN THE BOX AND OPTIONS
Accessories
Charging cradle (optional)
View full model details →

P5L

A lightweight handheld for payments beyond the counter.

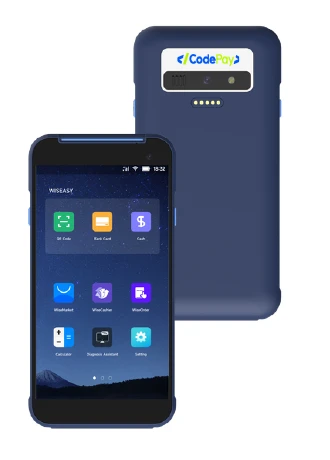

CodePay P5L terminal
5.5"
HD touchscreen
230 g
Handheld weight
4G
plus dual-band Wi-Fi
3,420 mAh
Battery
Request a demo unitCompare models
[ 04.A ] FULL SPECIFICATIONS
PLATFORM
Model
P5L
Operating system
WiseOS 3.0, based on Android 11
CPU
Quad-core Cortex-A53, 2.0 GHz
Memory
2 GB LPDDR4 + 32 GB eMMC
DISPLAY AND INPUT
Display
5.5" 1280×720 HD, capacitive multi-point touch
Camera
Front 2 MP FF (optional) · Rear 5 MP AF, 2D scan engine optional
Audio
1 W speaker · Mic (optional)
Buttons
Power · Scan
CONNECTIVITY
Network
2G / 3G / 4G
Wi-Fi
2.4 / 5 GHz, IEEE 802.11 a/b/g/n/ac
Bluetooth
5.0, BLE
GPS
GPS / A-GPS, GLONASS, BeiDou
Ports
USB-C 2.0 OTG · 5 pogo pins
PAYMENTS AND SECURITY
Security processor
Max 32555
NFC
13.56 MHz, ISO/IEC 14443 Type A & B, MIFARE S50/S70, FeliCa
Card readers
MSR: ISO 7810–7813, 3 tracks · IC card: ISO 7816
Card slots
2 × Micro SIM · 2 × PSAM · 1 × TF up to 128 GB
HARDWARE AND POWER
Battery
Removable lithium polymer, 3.85 V / 3,420 mAh
Adapter
Input AC 100–240 V, 50/60 Hz · Output 5 V / 2 A
Size (L × W × H)
155 × 77 × 17.2 mm
Weight
230 g
Environment
Operating −10 °C to 55 °C · Storage −20 °C to 60 °C · Humidity ≤ 95%
IN THE BOX AND OPTIONS
Accessories
Charging cradle, multi-port charging cradle (optional)
View full model details →

T2

A 10.1" tablet for flexible and customer-facing POS workflows.

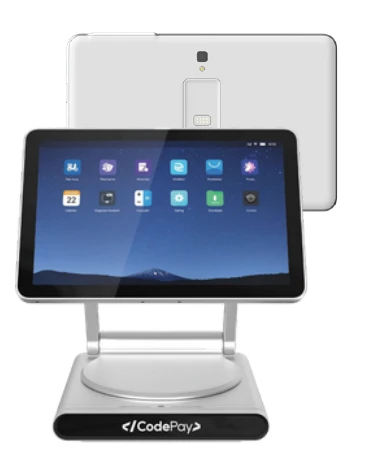

CodePay T2 terminal
10.1"
1920×1200 display
8-core
2.0 GHz CPU
7,000 mAh
Fast-charging battery
Android 13
WiseOS 3.0
Request a demo unitCompare models
[ 05.A ] FULL SPECIFICATIONS
PLATFORM
Model
T2
Operating system
WiseOS 3.0, based on Android 13
CPU
Octa-core, 2.0 GHz
Memory
2 GB LPDDR4 + 32 GB eMMC
DISPLAY AND INPUT
Display
10.1", 1920×1200, 10-point touch
Camera
Front 5 MP FF · Rear 8 MP AF, 1D/2D barcode scan · LED flash for the rear camera
Fingerprint
Side fingerprint unlock
Audio
2 W speaker · Buzzer
Buttons
Power · Volume + / −
CONNECTIVITY
Wi-Fi
2.4 / 5 GHz, IEEE 802.11 a/b/g/n/ac
Bluetooth
5.2, BLE
GPS
GPS / A-GPS, GLONASS, BeiDou
Ports
USB-C 2.0 OTG
PAYMENTS AND SECURITY
Security processor
Max 32555
NFC
13.56 MHz, ISO/IEC 14443 Type A & B, MIFARE S50, MIFARE One S70, FeliCa
Card readers
MSR: ISO 7810–7813, 3 tracks · IC card: ISO 7816
Card slots
1 × Micro SIM · 1 × PSAM or 1 × SIM · 1 × eSIM (optional)
HARDWARE AND POWER
Battery
3.87 V / 7,000 mAh, fast charging
Adapter
Input AC 100–240 V, 50/60 Hz · Output 5 V/3 A, 9 V/2 A, 12 V/1.5 A
Size (L × W × H)
247 × 163 × 12.3 mm (tablet only)
Weight
635 g (without stand)
Environment
Operating −10 °C to 55 °C · Storage −20 °C to 60 °C · Humidity ≤ 95%
IN THE BOX AND OPTIONS
Accessories
Swivel stand · Swivel stand with MSR · Smart PIN pad holder
View full model details →

RX

A compact Android reader for unified payment acceptance.

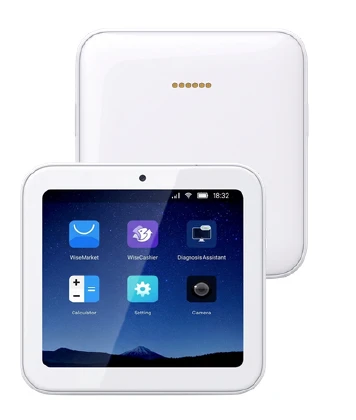

CodePay RX terminal
4"
Square touchscreen
186 g
Weight
4G
plus dual-band Wi-Fi
Android 12
Operating system
Request a demo unitCompare models
[ 06.A ] FULL SPECIFICATIONS
PLATFORM
Model
RX
Operating system
Android 12
CPU
Quad-core processor
DISPLAY AND INPUT
Display
4" square touchscreen
CONNECTIVITY
Network
4G
Wi-Fi
Dual-band Wi-Fi
HARDWARE AND POWER
Weight
186 g

Full RX specification sheet available on request.

View full model details →

P5L PIN Pad

A customer-facing PIN pad that connects to your POS.

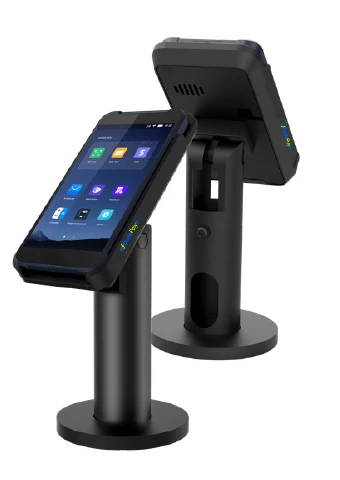

CodePay P5L PIN Pad terminal
5.5"
HD touchscreen
RJ45
Ethernet
PCI PTS
6.1 certified
Android 11
Operating system
Request a demo unitCompare models
[ 07.A ] FULL SPECIFICATIONS
PLATFORM
Model
P5L PIN Pad (P5L-PINPad)
Operating system
Android 11
CPU
Quad-core Cortex-A53, 2.0 GHz
Memory
2 GB LPDDR4 + 32 GB eMMC
DISPLAY AND INPUT
Display
5.5" IPS, 1280×720 HD, capacitive multi-point touch
Camera
Front 2 MP FF
Audio
1 W speaker
CONNECTIVITY
Wi-Fi
2.4 / 5 GHz, IEEE 802.11 a/b/g/n/ac
Bluetooth
5.0, BLE
Ports
1 × USB-C power input · 1 × RJ45 Ethernet
PAYMENTS AND SECURITY
Security processor
Max 32555
NFC
13.56 MHz, ISO/IEC 14443 Type A & B, MIFARE S50/S70, FeliCa
Card readers
MSR: ISO 7810–7813, 3 tracks · IC card: ISO 7816
Certifications
EMV CT L1/L2, EMV CTLS L1, Visa, Mastercard, Amex, Discover, UPI, JCB, MCCS, RuPay, NSICCS, PCI PTS 6.1, TQM, CE, FCC
HARDWARE AND POWER
Environment
Operating −10 °C to 55 °C · Storage −20 °C to 60 °C
View full model details →
